5 Step Application Deployment in AWS using Apache Mesos and Marathon

INTRODUCTION:

Apache Mesos is a kernel for the datacenter. It provides APIs for resource management and scheduling. Marathon is a framework for Apache Mesos and provides a scheduler to execute tasks on Mesos slaves. In this blog, we will be providing 5 steps on how to launch a simple application on a single Ubuntu 16.04 LTS machine in Amazon Web Services(AWS) using both these tools.

Step 1: Install Zookeeper

For the installation, it is assumed that an Elastic Cloud Compute (EC2) instance with a public IP address is already created using Ubuntu’s 16.04 LTS Amazon Machine Image (AMI). It is also assumed that the following ports are already opened in Security Groups and/or firewalls for that instance.

• 5050: To access Apache Mesos Master
• 5051: To access Apache Mesos Slave
• 8080: To access Marathon

After ssh into the EC2, we will run the following two commands to install zookeeper.

sudo apt-get -y update
sudo apt-get -y install zookeeperd

Note that by installing zookeeperd, we will get both; the init control scripts and the zookeeper itself. We can confirm that installation went fine by running

sudo service zookeeper status

and seeing that zookeeper is active (running)

Step 2: Install Apache Mesos

In order to install mesos, we need to first add Mesosphere official package repository in our instance’s source list directory. This is achieved by running the following commands:

First we need to setup the key.

sudo apt-key adv --keyserver keyserver.ubuntu.com --recv E56151BF
DISTRO=$(lsb_release -is | tr '[:upper:]' '[:lower:]')
CODENAME=$(lsb_release -cs)


echo "deb http://repos.mesosphere.com/${DISTRO} ${CODENAME} main" | sudo tee /etc/apt/sources.list.d/mesosphere.list

We can confirm that the file mesosphere.list exists in /etc/apt/sources.list.d directory with contents along the lines of

deb http://repos.mesosphere.com/ubuntu xenial main

Now we can install Mesos by

sudo apt-get -y update
sudo apt-get -y install mesos

Step 3: Start Master and Slave Services

We need to make sure that Mesos master and slave can be accessed via their public IP address. For that purpose we will go and create the file advertise_ip in two locations:

• /etc/mesos-master
• /etc/mesos-slave

In both locations make sure that the content of advertise_ip should be the public IP address of the EC2 instance. This can be achieved by

echo xxx.xxx.xxx.xxx | sudo tee /etc/mesos-master/advertise_ip
echo xxx.xxx.xxx.xxx | sudo tee /etc/mesos-slave/advertise_ip

where xxx.xxx.xxx.xxx is the public IP address of the instance.

Now let’s start the master service first

sudo service mesos-master start

and then start slave service

sudo service mesos-slave start

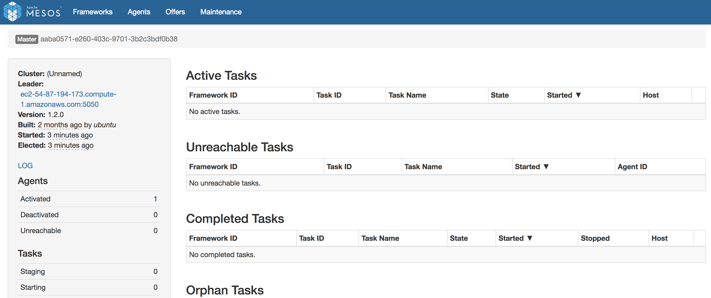

At this point we should be able to navigate, via a web browser, to the instance’s public IP and port 5050. We will see the Mesos GUI similar to the one below. Notice the count against Activated Agents is 1.

Step 4: Install Marathon

Marathon is one of the frameworks for Apache Mesos. We can use it to deploy code on Mesos cluster. In order to install it we run

sudo apt-get install -y marathon

and then start the service

sudo service marathon start

By default, Marathon runs of port 8080. By pointing the browser to public IP address and port 8080, we can access its GUI.

Step 5: Deploy Application

We can deploy a simple application. Click the ‘Create Application’. Then on the pop up window for ID type

hello-marathon

and for Command

while [ true ] ; do echo 'Hello Marathon' ; sleep 5 ; done

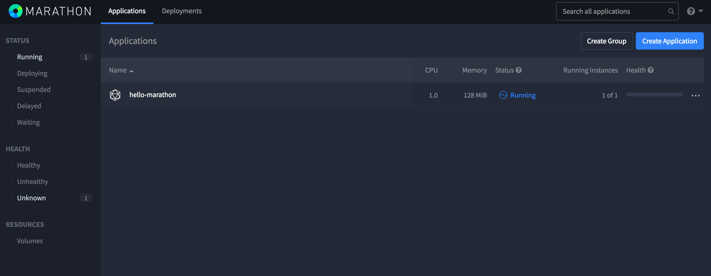

and then click the “Create Application”. We should see the application to start deploying and eventually running.

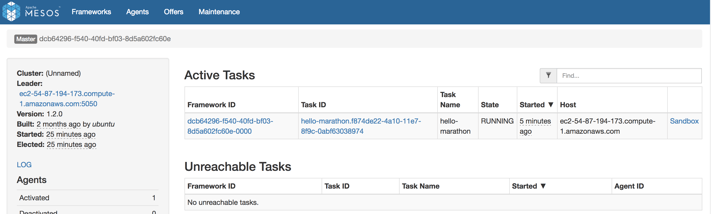

We can go back to the Mesos and see an Active task running

Once we click “Sandbox” for this task and click “stdout” we should see "Hello Marathon" to be printed there.

CONCLUSION:

5 simple steps were provided on how to deploy code in AWS using Mesos and Marathon. The keys are

• To make sure zookeeper is installed first. Mesos installation should take care of this dependency, but on Ubuntu 16.04 LTS zookeeper service doesn't work if it is not installed separately first.
• That security groups/firewalls are properly configured, otherwise we won't be able to access the instance from outside AWS.
• that  public IP address of the instance is advertised for both master and slaves. Otherwise we may be able to access the tools from outside AWS, but the links shown in Mesos and Marathon will be internal AWS links and won't work properly from outside of AWS.
